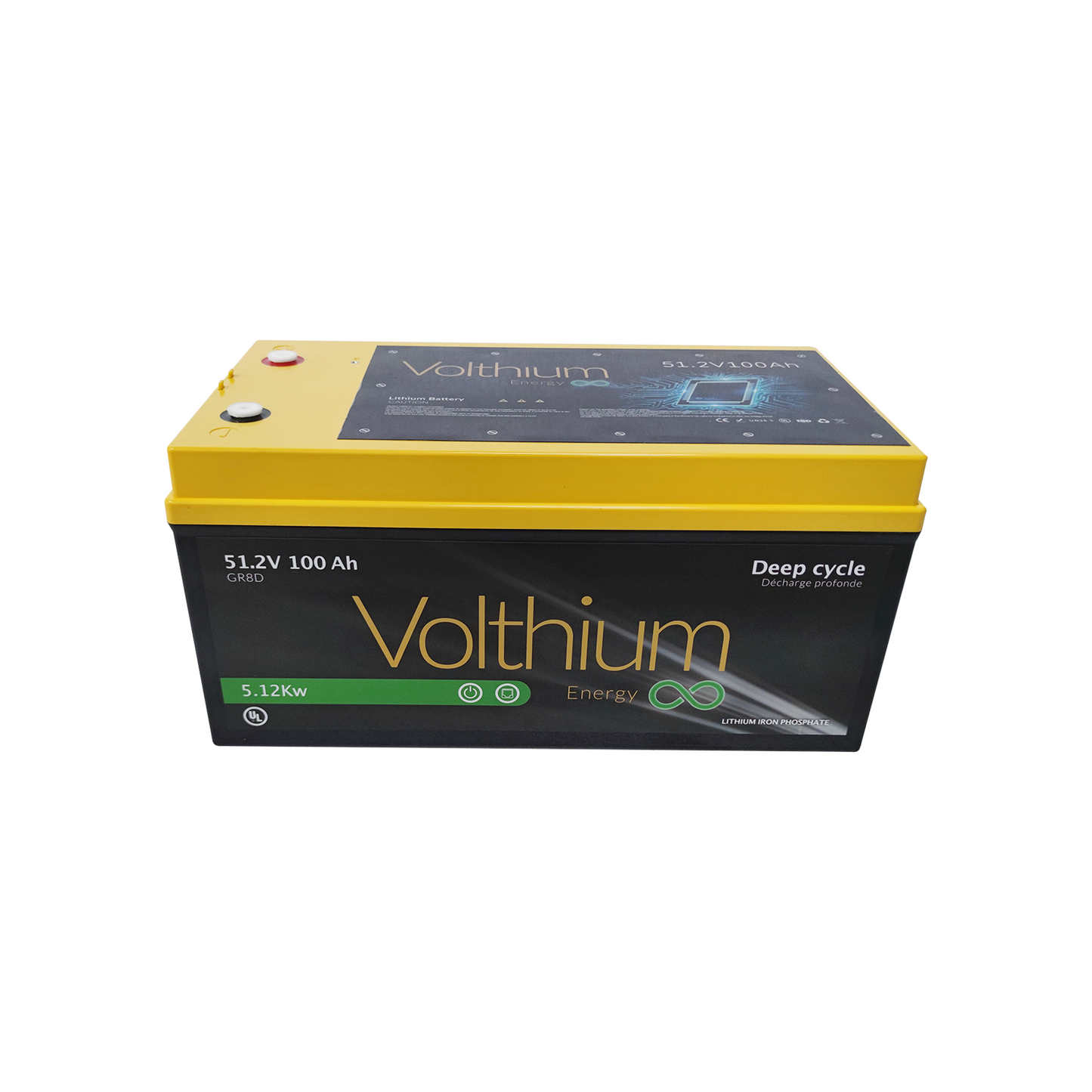

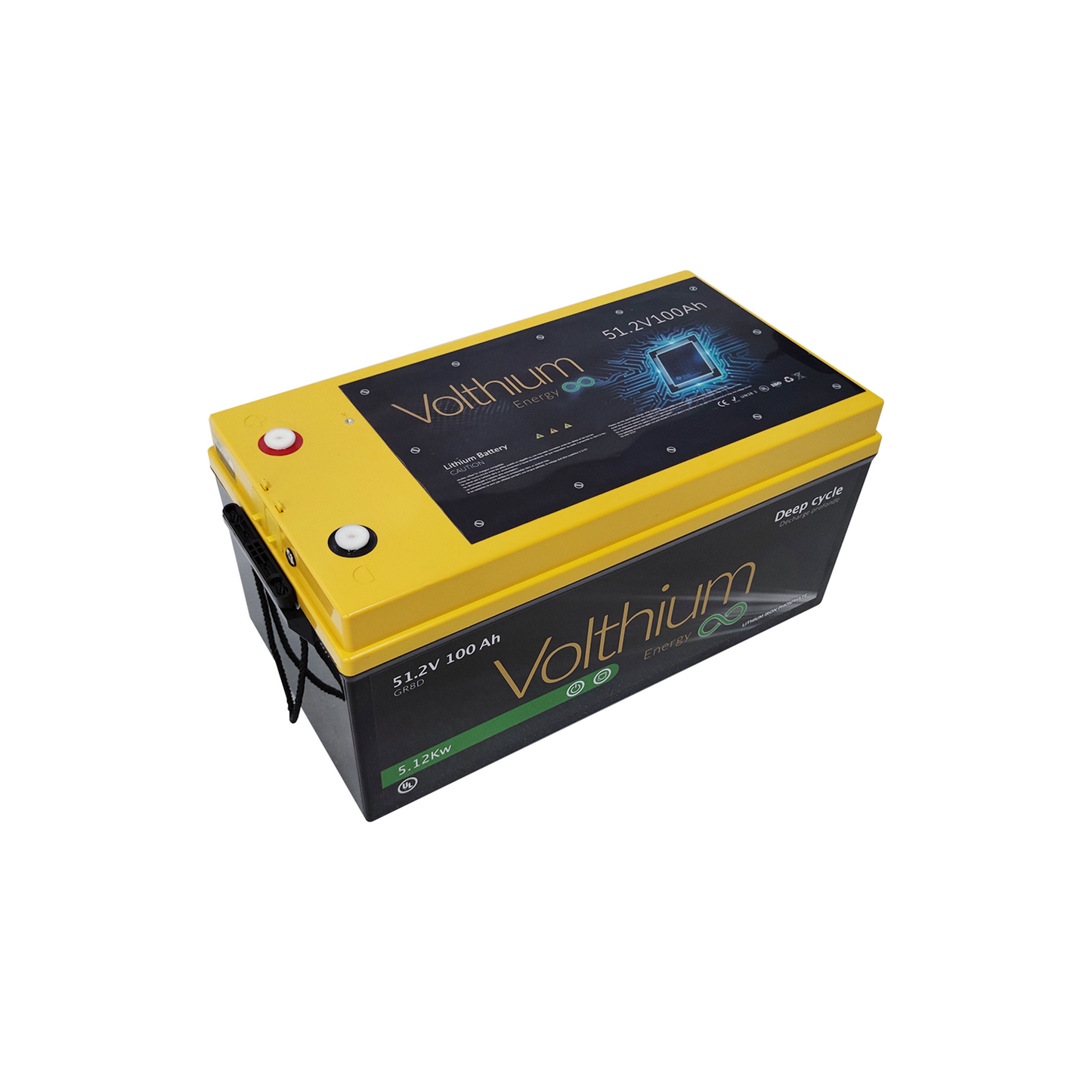

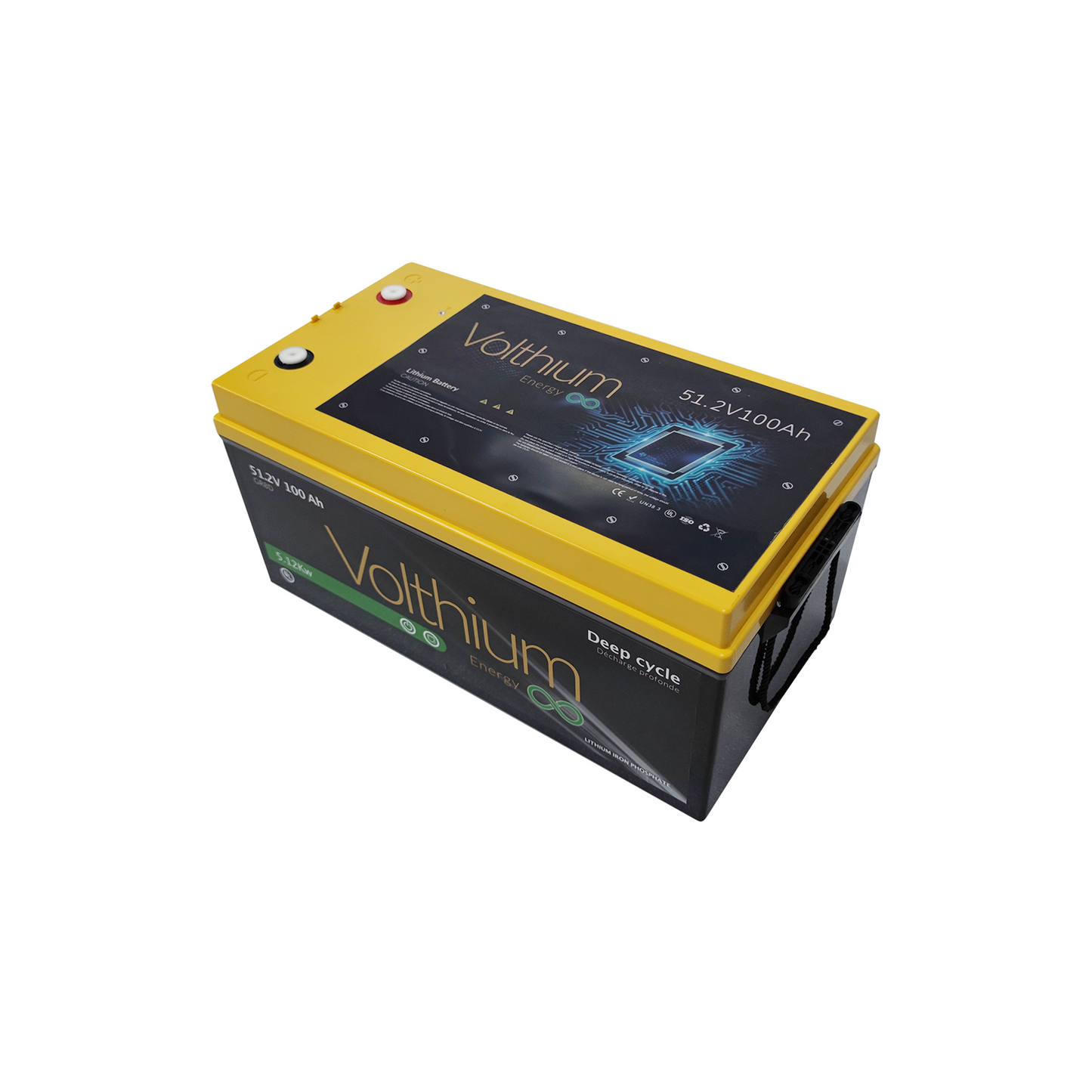

Volthium 51.2V 100AH Battery – 8D

Volthium's 51.2V 100AH ABS battery in 8D format is manufactured specifically for electric boats, sailboats (for inverters), motorized vehicles and golf cart such as Polaris.

The Volthium 51.2V100AH batteries, with or without integrated heating system, are equipped with MODBUS and CANBUS communication protocols. They communicate with Schneider, Victron and Solark inverters. Also, they are ABYC compliant, including clause E-13, regarding communication.

Indeed, the battery integrates the communication allowing the customer to define an audible and visual alert before the batteries fall into protection. Using their cell phone and the Volthium Monitor application, the customer will be able to set an alert for a specific %SOC, of their choice, in addition to setting a warning alert for high temperature, and low temperature. This feature is available on multiple Volthium Batteries. In addition, the 51.2V 100AH batteries are made with CSA UL1973 certified cells.

The battery is designed for energy storage banks ranging from 5kWh to 20 kWh.

Available in Self-heating version (Dual Technology) : 51.2V 100AH self-heating battery

These batteries have the particularity to have an accessible and reserved chamber for the BMS. This makes them repairable in case of need, and allows to prolong the life of the cells by limiting the transmission of heat to them. In addition, a private chamber increases the usable temperature range of these batteries.

This new generation of batteries also features a stainless steel button to deactivate discharge. The battery is also equipped with an incoming charge current regulator (DC-DC @ 9Amp). A Soft Start for precharging the capacitors is also integrated.

This LiFePO4 battery is manufactured for the commercial industry and designed to resist vibration.

If you opt for the self-heating version, it can be recharged down to -40 degrees.

10 years warranty, useful life around 15 years and more.

Average operation beyond 6000 cycles.

Certifications: Full assembly: UL1973 & ABYC | Cells UL1642, UL1973, IEC62619, IEC62660, CSA UL9540A.

BMS:

The core of the BMS is produced by the American company Texas Intrument. This manufacturer of BMS microcontrollers is recognized worldwide in the field of electric automobiles, in addition to its long-standing collaboration with NASA and the U.S. Army. The programming and communication protocols are entirely developed by our engineers in Quebec.

Cells :

The quality of LFP cells is paramount. Indeed, they are the ones that will ensure you to have a durable product and whose long-term performances will be faithful.

The 24V ABS solar storage batteries are equipped with GRADE A+ prismatic cells, manufactured by Volkswagen Group.

Engineering:

True pillar, bringing together the strength of each of the parts integrating the product. Our engineering is distinguished by the selection of the best components in each industry, with the objective of obtaining the best final product, scalable to future needs and impossible to compete with. The continuous integration of new communication protocols, combined with the custom development established for our clients, as well as the integration of technologies perfectly adapted to our Canadian environment, makes Volthium a reference in terms of design quality.

Translated with www.DeepL.com/Translator (free version)

KEY FEATURES

• CSA UL1973 certification for complete assembly
• ABYC compliant, including lause E-13
• Access to BMS (reserved room)
• Switch allowing to disable the discharge while keeping the charge possible
• RS485 & Victron VE.CAN communication (RJ45 communication port; compatible with Volthium-Victron accessories)
• Discharge possible down to -30 degrees
• 10 year limited warranty
• 100A continuous discharge current
• Up to 4 batteries in parallel
• Protection against cold charging
• Quebec engineering
• Weight of 98 pounds
