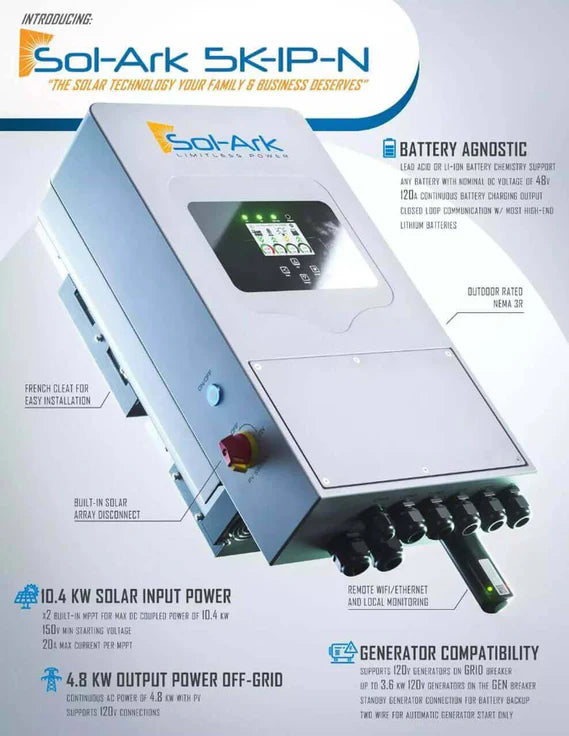

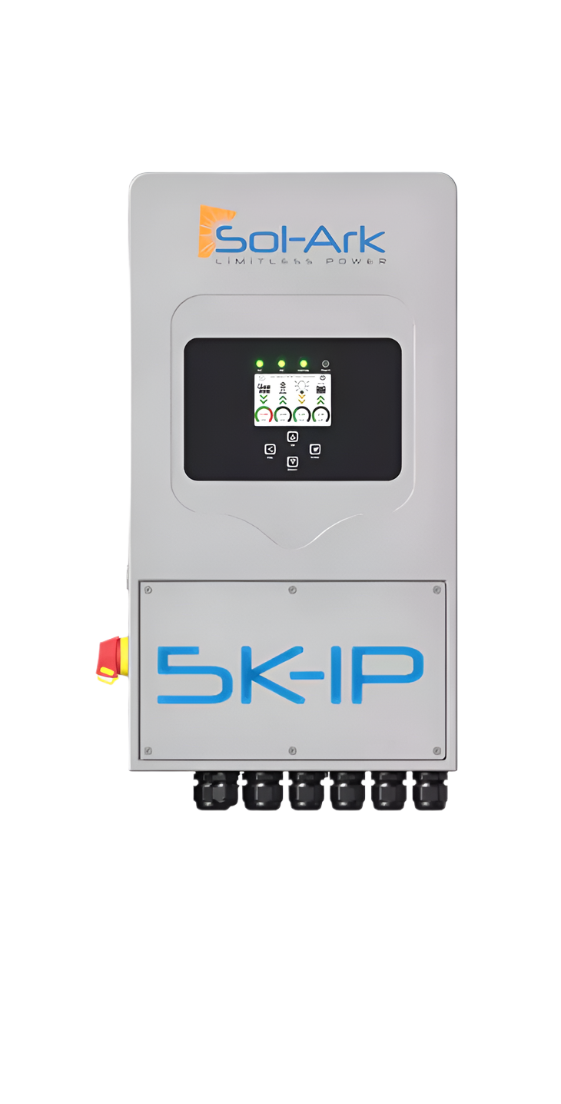

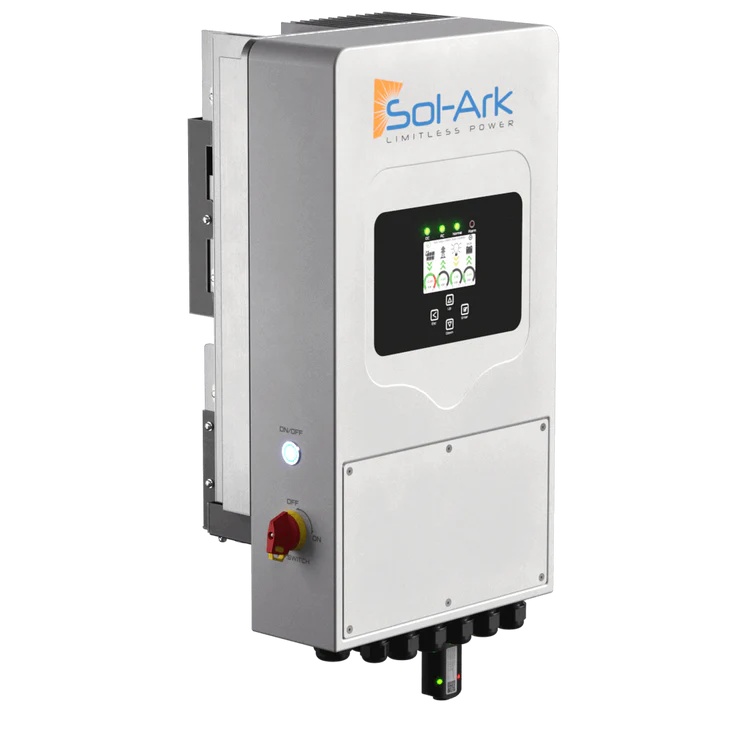

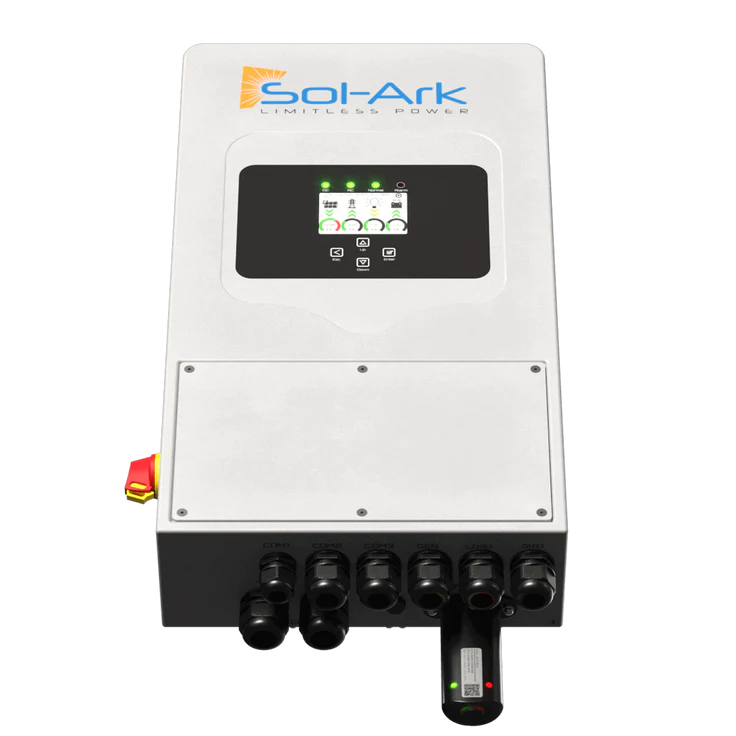

Sol-Ark 5K All-In-One Inverter/Charger

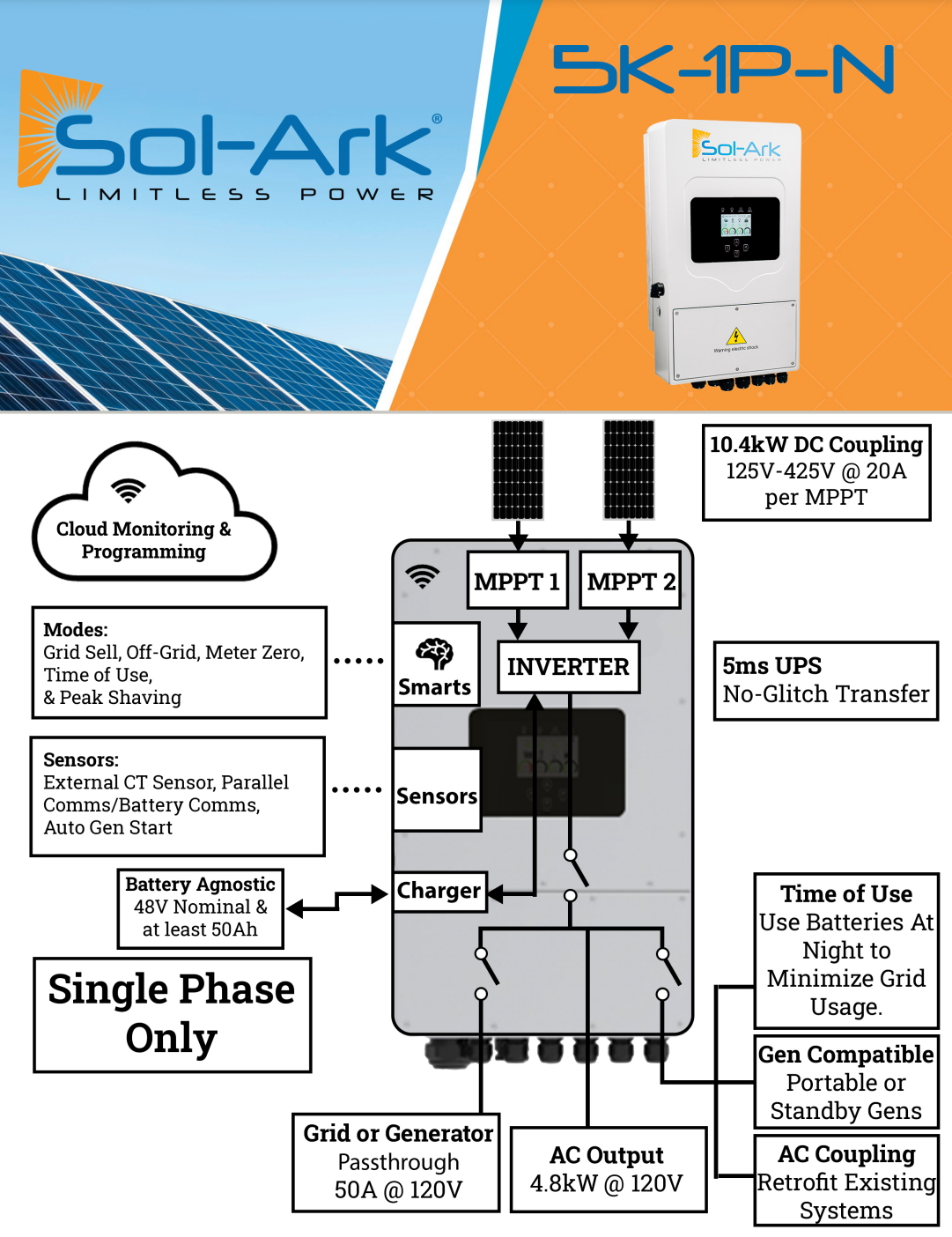

The Sol-Ark 5K Pre-Wired Hybrid Inverter System is an all-in-one solar solution combining an inverter, charge controller, and display with remote monitoring for easy setup. Designed for grid-tied, off-grid, or battery backup solar systems, it intelligently manages power flow from solar panels, batteries, the grid, loads, and generators.

Key Features:

• Lightweight and compact—33% less weight
• Perfect for 120V-only setups
• 120V generator compatible
• Ultra-fast 5.0 millisecond transfer time

Technical Details:

• Model: SA-5K-1P-N
• Rated Power Output: 4,800 W
• DC Power Rating: 10,400 W | Max Input Voltage: 500 V | Max Input Current: 40 A
• AC Power: 4,800 W nominal, 120V, 60 Hz
• Number of DC Inputs: 4 | MPPT Trackers: 2
• Efficiency: 97.6% | Transformerless DC
• Cooling: Integrated fans | Enclosure: IP65 / NEMA 3R
• Display: LCD touchscreen
• Communication: Wi-Fi, LAN, CanBus, RS485
• Ambient Temperature Range: -25°C to +60°C (-13°F to +140°F)
• Weight: 28.12 kg (62 lb)
• Warranty: 5 years

Safety & Compliance:

• Reverse-polarity protection
• DC disconnection integrated
• Compliances: UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 Class B

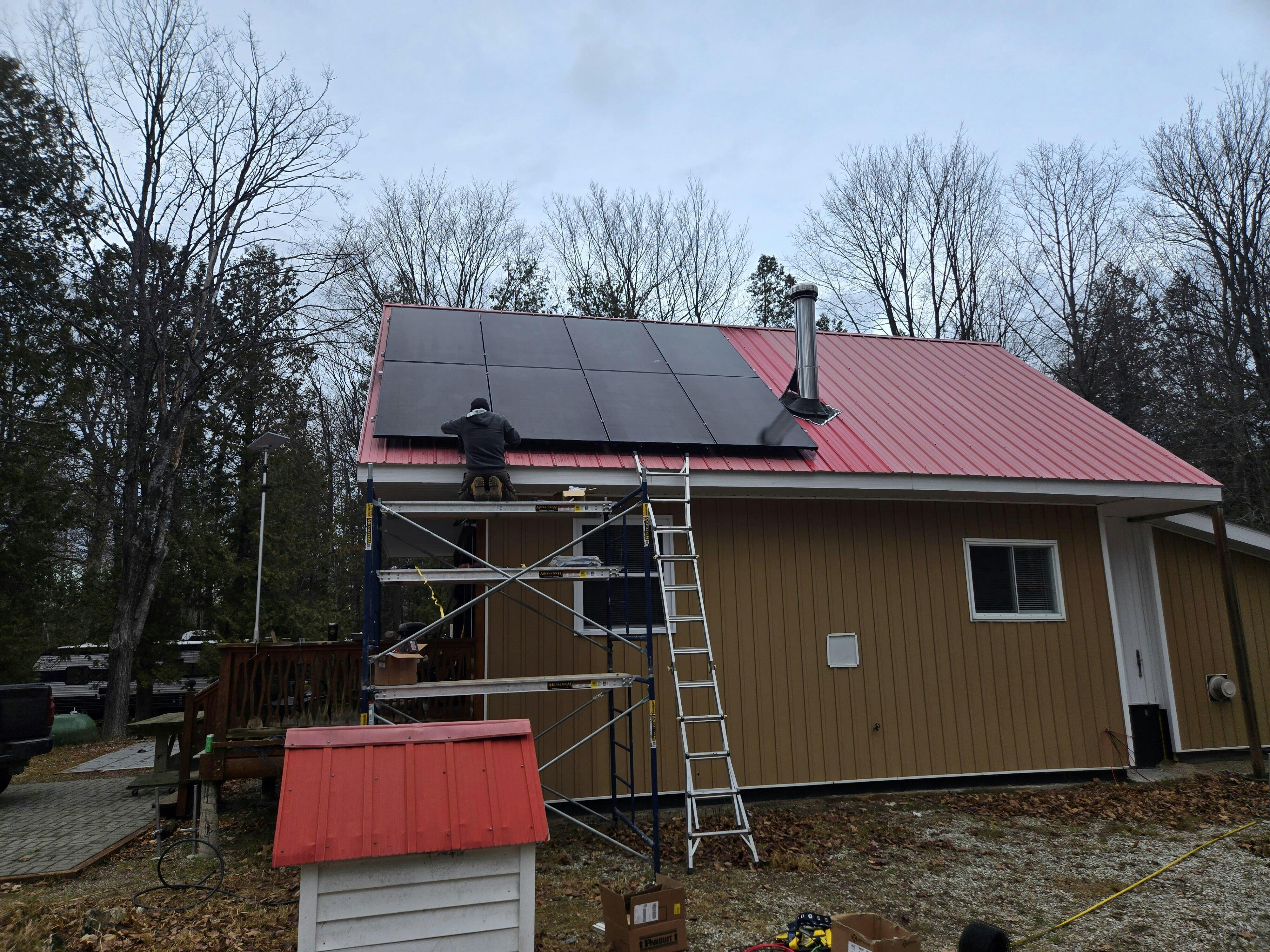

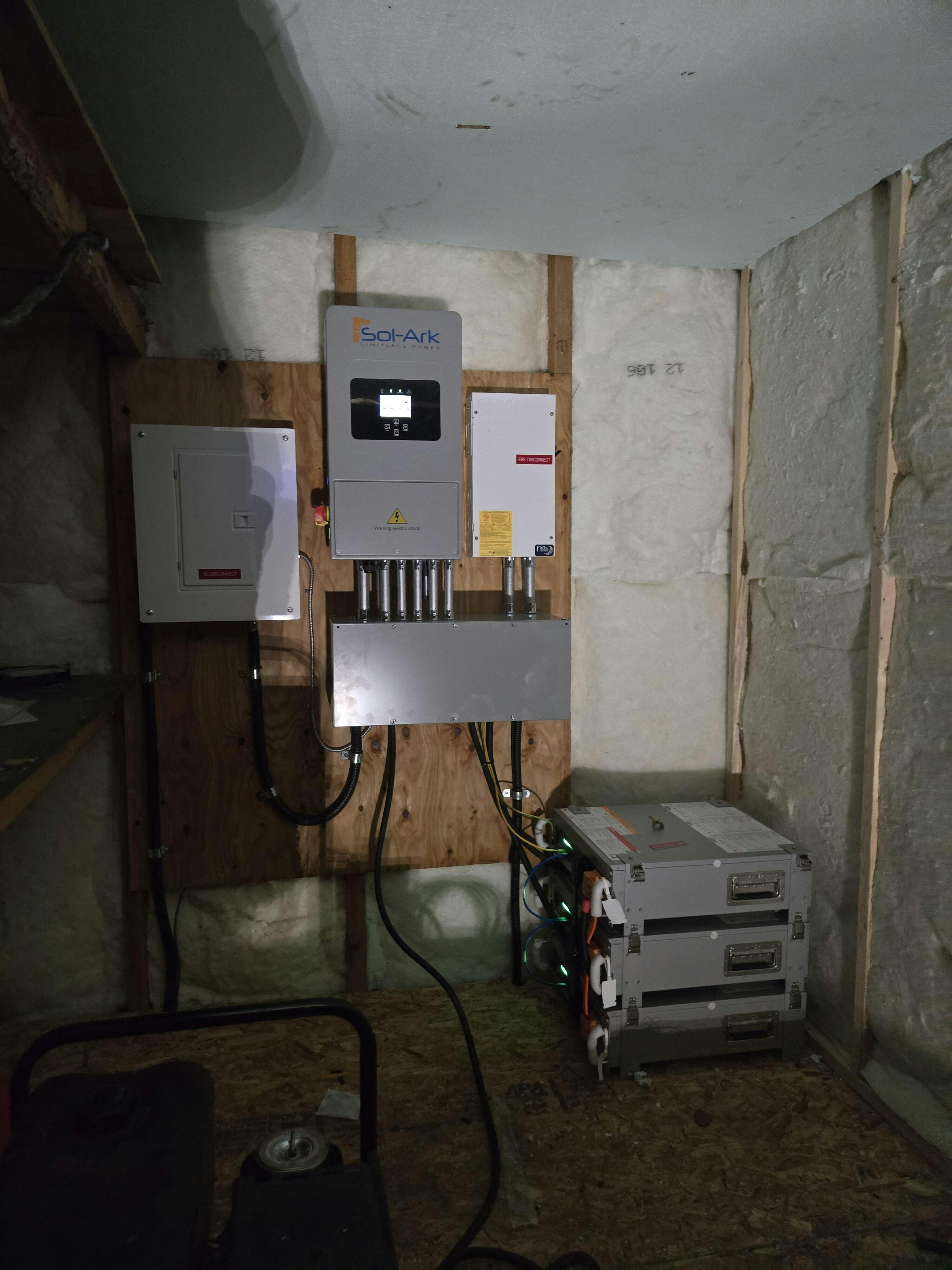

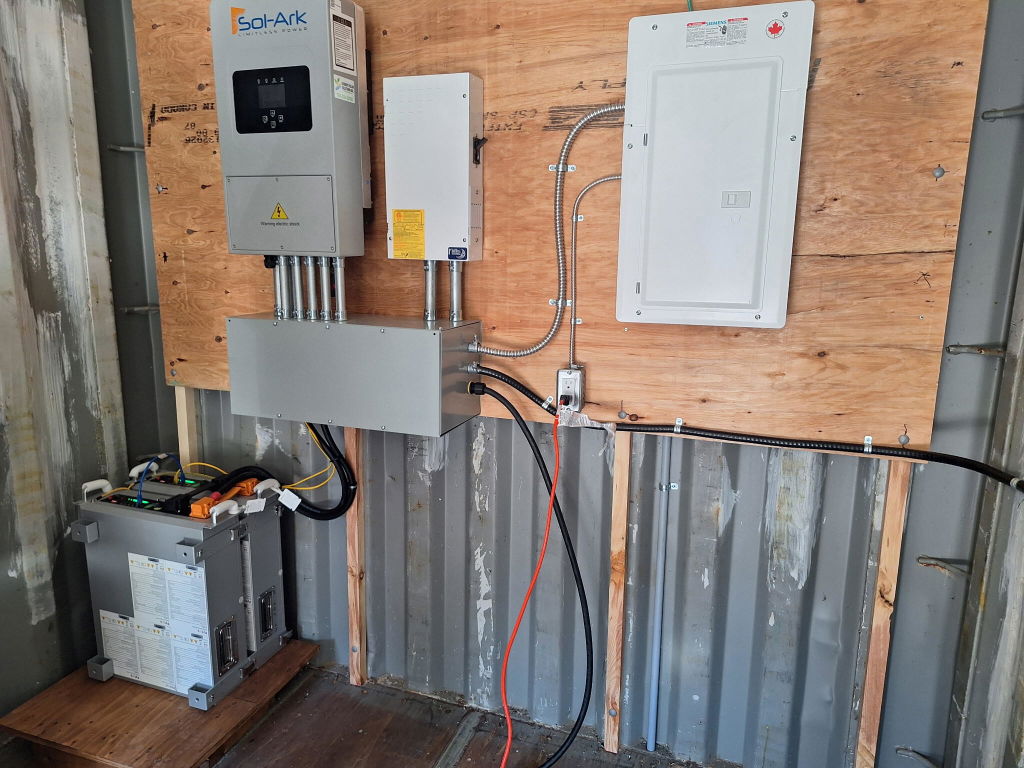

🌱 Sudbury Solar Solutions is Northern Ontario's ONLY Sol-Ark Gold Star Installer, providing expert design, installation, and support for premium solar and battery backup systems.

Product Documentation:

• JA12 Battery Storage Declaration Statement (2023)
• Anti-Islanding Letter
• Rule 14H-IEEE1547-2018 Certifications (2024)
• Spec Sheet & Product Manual

The Sol-Ark 5K is a reliable, intelligent, and versatile inverter system that simplifies solar installation while delivering efficient, seamless energy management.
