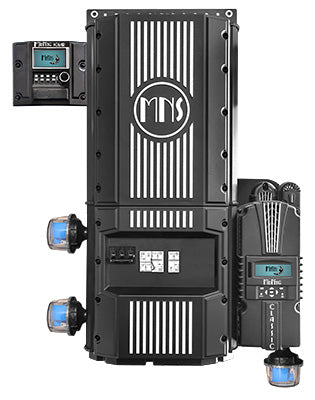

MidNite Rosie Pre-Wired System

Engineered by MidNite Solar’s experts with over 100 years of renewable energy experience, the Rosie Pre-Wired System delivers high-frequency, high-power, pure sine wave electricity in a compact, lightweight design. Perfect for off-grid homes, cabins, and backup power applications.

All-in-One Package Includes:

• Rosie Inverter (7000 W / 48 V DC)
• Rosie E-Panel & Backpanel
• MidNite Classic 200 MPPT Charge Controller
• MNGP2 Graphics & Programming Module
• Lightning Arrestors
• 2x MNSPD-300-AC (Rosie) & 1x MNSPD-300-DC (Classic)
• Battery Temp Sensor & Remote Voltage Sensor

Key Features:

• True sine wave inverter with charger, 120/240 VAC output
• Extremely lightweight: Inverter 42 lbs, E-panel 21 lbs, Backpanel 8 lbs
• Zero transfer time & quiet forced-air cooling
• Auto generator start (two-wire compatible)
• State of charge monitoring via MidNite Wizbang Jr. & MNGP2
• Canbus communication & lithium compatible
• 60 A transfer relay, die-cast aluminum enclosure
• Gecko/mud dauber screened & UL1741 listed (CSA pending on breaker boxes)

Performance Specs:

• Continuous output: 7000 VA @ 25°C / 6000 VA @ 40°C
• Maximum surge: 15,000 VA
• Max output current: 88 A (60 s RMS)
• DC input range: 40–65 V
• Max solar charge: 86/78/55 A
• Max AC charge: 120 A (can combine with solar)
• Charge control: 2- or 3-stage
• Warranty: 7 years

Designed & built in Arlington, WA, USA – lightweight, powerful, and ready for your off-grid energy needs.
