Magnum Battery Monitor Kit

The Magnum Battery Monitor Kit is a precision single-bank amp-hour meter that tracks your battery’s performance and provides critical information about its state of charge. By monitoring volts, amps, and amp-hours, it helps prevent over-discharge and lets you plan your energy usage efficiently, ensuring your battery bank remains healthy and reliable.

Designed for easy installation, the ME-BMK integrates seamlessly with Magnum Energy inverters/chargers via ME-RC50 or ME-ARC50 remotes, or through the ME-RTR router, providing detailed, real-time battery data.

Key Specifications:

• DC Voltage: 7–70 V (±0.5%), auto-detection
• DC Amps: ±0.1 to 999 A (±1.0%)
• Battery SOC: 0–100% in 1% increments
• Amp Hours: ±32,768 AH (1 AH increments), resettable AH out: 0–65,353 AH
• Power Draw: <0.6 W
• Min/Max DCV Display: 7–70 VDC, resettable

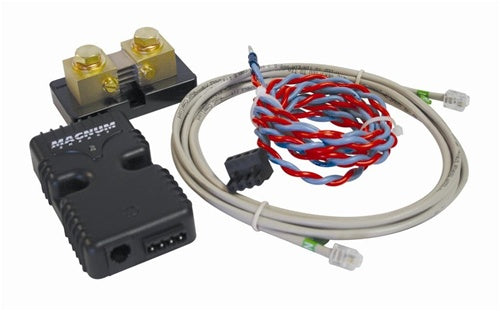

Kit Includes:

• Manual, sense module, DC shunt
• Twisted pair sense wire (5’ blue & orange, 18 AWG)
• 10’ communication cable (4-conductor twisted pair)

Remote Requirements:

• ME-RC with firmware 2.0+ or ME-ARC (all revisions)

The Magnum ME-BMK ensures accurate battery monitoring for safer, smarter off-grid, backup, or hybrid power systems.

Click HERE for manual
