IntegraRack IR-35A BallastRack™ Racking System (Single Frame)

IntegraRack IR-35A BallastRack™ Racking System (Single Frame)

Regular price $225.00 CAD
Regular price Sale price $225.00 CAD
Sale Call for availability!
Shipping calculated at checkout.

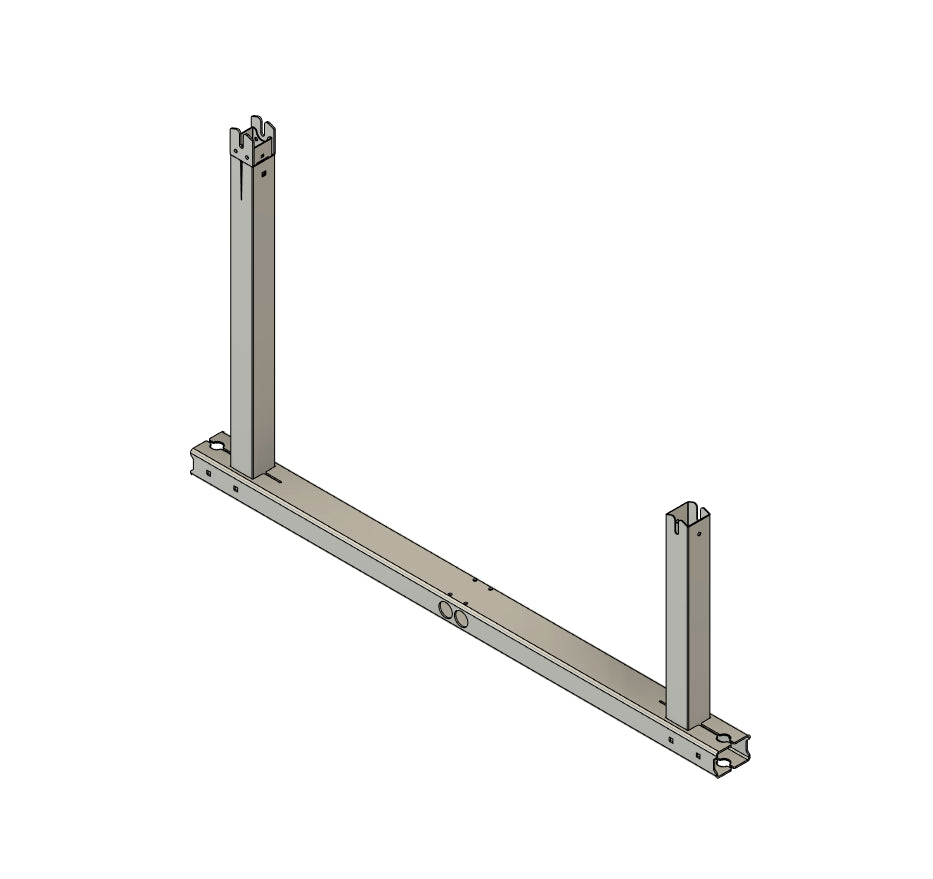

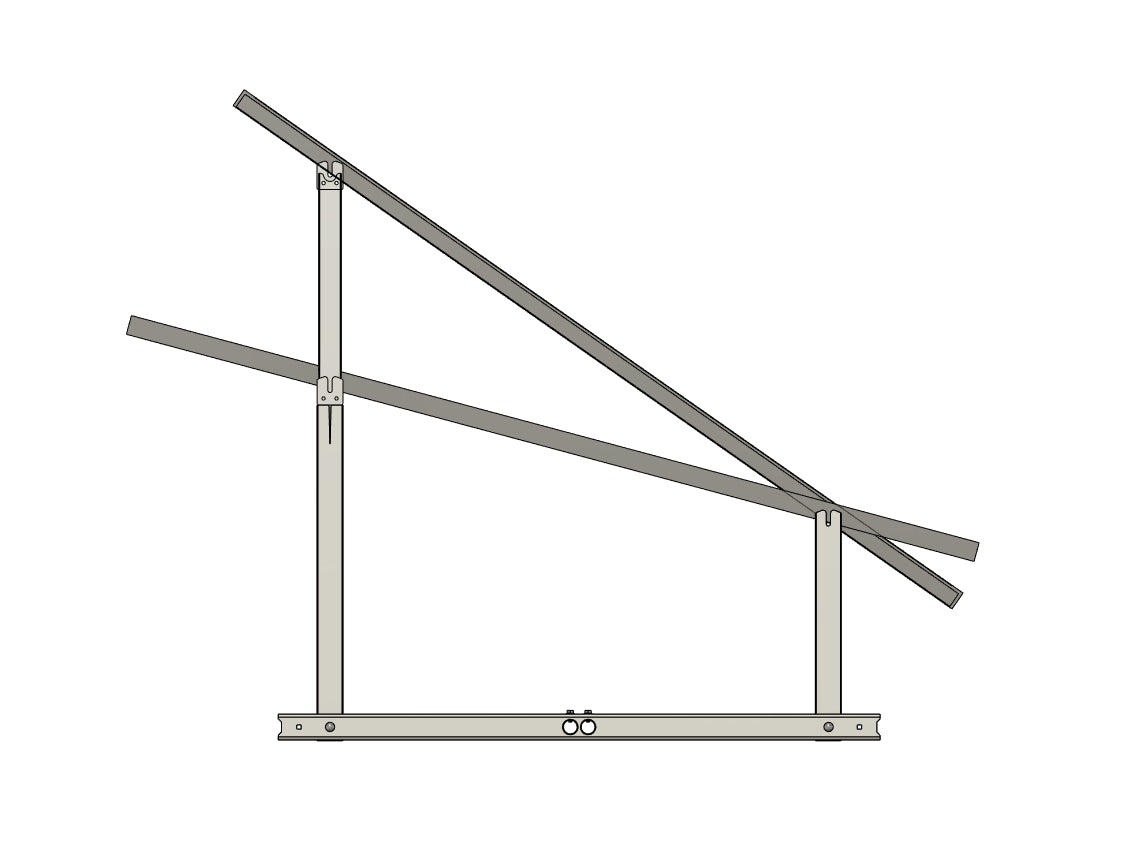

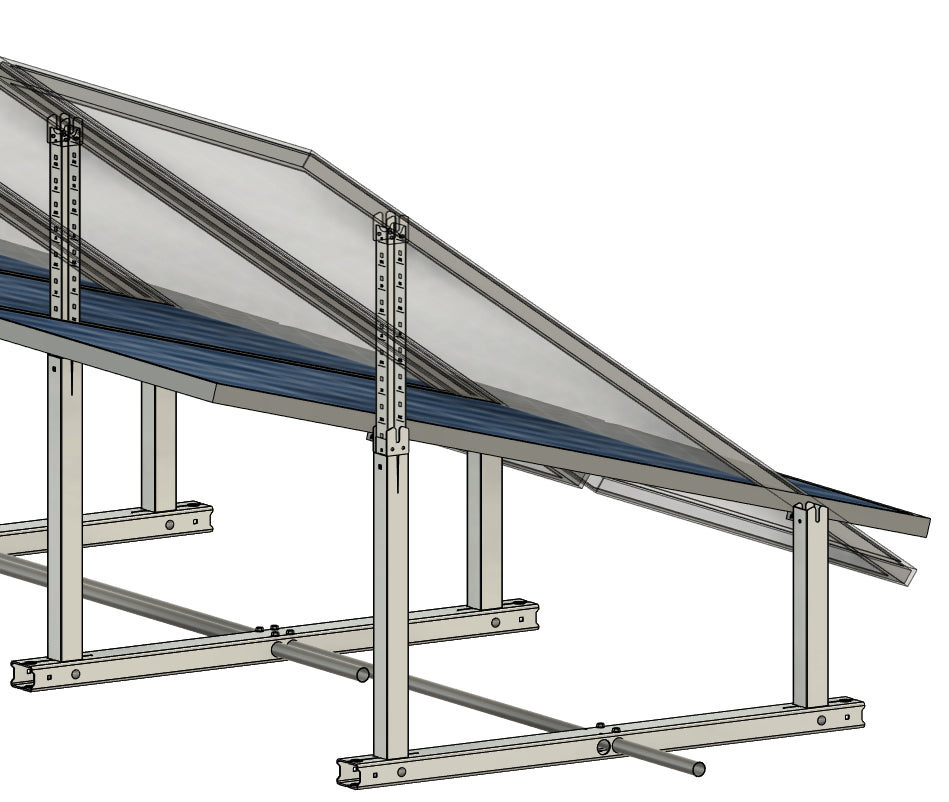

The IR-35A BallastRack™ is a 35° adjustable ground-mount frame designed for flexible solar installations. Tilt angles can be set from 15° to 35° in 2.5° increments. The system can be ballasted using flat water tanks, concrete blocks, or paired with one of three available mounting kits. Each frame uses IR-F2 solar module bonding clamps for secure and reliable module attachment.

Included Hardware:

  • 4 IR-F2 Flange Clamp Bonding Brackets
  • 4 M8-1.25 x 90 mm Carriage Bolts
  • 4 M8-1.25 Serrated Nuts
  • 4 M8-1.25 x 16 mm Thread Cutting Bolts

Notes:

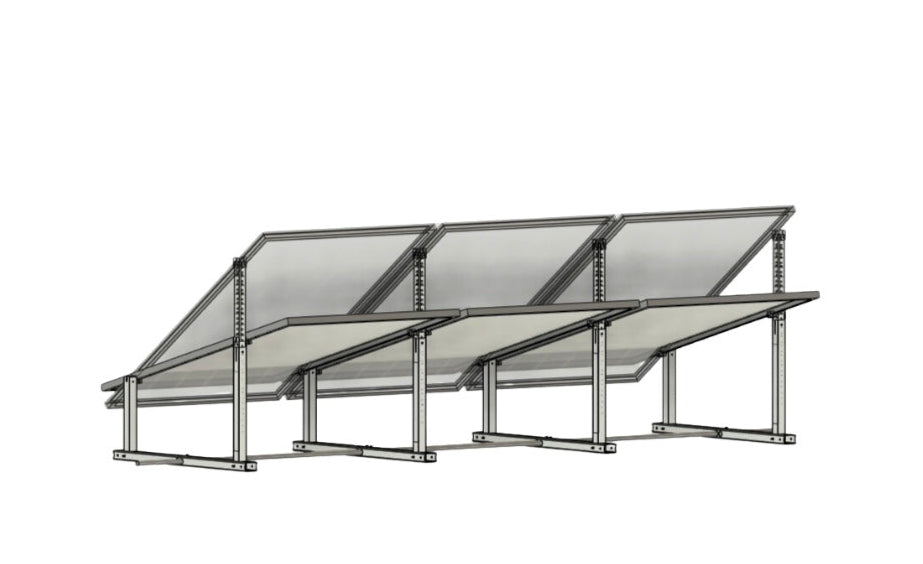

  • One solar module requires 2 frames; two modules require 3 frames, etc.
  • 1" EMT Conduit Pipe is not included

IR-35A BallastRack - Stamped Engineering & Datasheet (EN)

For sizing inquiries, please call 705-524-5000.
